Precast Concrete Curbstone Making Machine
Concrete edging enhances a garden by clearly defining its paths. You can buy cement curbstones and place them next to one another to achieve the required length.
Concrete Curbstone Making Machine | Precast
 |
 |
Concrete curbstone making machine
Concrete edging enhances a garden by clearly defining its paths. You can buy cement curbstones and place them next to one another to achieve the required length, or make the edging yourself using concrete and a wooden mold. A third option is to use a concrete curbing machine. Precast Concrete Curbstone Making Machine
 |
 |
 |
Features of the concrete curbing machine
This machine uses extrusion: compressed material, in this case concrete, is forced through a mold. Introduced in 1974, it is used for both roadworks and landscaping. Public works contractors and landscapers prefer this system to precast curbstones. Precast Concrete Curbstone Making Machine
Powered by an engine, this self-propelled machine has a reservoir shaped like a truncated pyramid, also called a hopper. It holds the concrete, which flows by gravity into a mold that shapes the curb. Many mold profiles are available, chosen according to the curb’s purpose and the style required for the path. Examples include gently sloping profiles and special mower edging, which gives a neat finish without damaging the mower blade. Precast Concrete Curbstone Making Machine
How the concrete curbing machine works
Simply start the engine and feed the machine with concrete previously prepared in a mixer. The machine moves forward by itself as concrete accumulates in the mold. It travels on two wheels, and a handle with a locking mechanism lets the user steer it around curves or allow it to run by itself along straight lines. Two cranks adjust the chassis height to produce curbs of different heights as required. Precast Concrete Curbstone Making Machine
 |
 |
 |
CONTACT: Mr. MOHAMED LAMINE — TEL: +90 549 325 66 60 (WhatsApp)
Advantages of the concrete curbing machine
- Its first advantage is the speed of curb construction. Most machines achieve 2.50 to 6 meters per minute, considerably faster than installing precast units. This also avoids having to move heavy blocks.
- Oxide-based pigments can also be added when mixing the concrete to produce curbs in the desired color. Because the color extends throughout the material, the curb retains its original color for a long time.
- Finally, curves can take any angle, unlike precast curbstones with predefined curves.
- The machine’s main drawback is its price, although renting is an option for very occasional use.
Buying or renting a concrete curbing machine
A new machine costs between €3,000 and €5,000 excluding VAT, but used machines are also available.
Rental seems a good solution for occasional use. Machines are fairly easy to find through private owners or rental companies. Prices range from €150 to €200 per day. This may seem expensive, but it ultimately works out much cheaper than buying curbstones from a building materials supplier.
 |
 |
 |
Types of concrete curbing machines: descriptions and prices
Ideally suited to landscaping, this equipment produces continuous concrete curbs to industry standards and is reliable and easy to use.
Curb types: A1 A2 CS1 CS2 T1 T2 T3 I1 I2 IL P1 P3
The mobile machine casts curbs in place, saving the customer time compared with installing precast curbstones. It is simple to use: just start the engine and feed the machine with concrete. It reduces inventory requirements because there is no need to stock different curbstones, and its handlebars make curves easy to form. It is also easy to transport and fits in a car trunk.
The stationary machine produces precast curbstones.
A mobile concrete or asphalt curbing machine is construction equipment used to lay concrete or bituminous curbs directly along a road, garden edge or elsewhere. A concrete, asphalt or bitumen curbing machine, also called an asphalt curb profiling machine, is very useful for road surfacing. Asphalt is a naturally occurring blackish mixture of limestone, silica and bitumen. It is a road-surfacing preparation based on tar and stone chips. Bitumen is also used as a synonym for asphalt. Precast Concrete Curbstone Making Machine
A semi-automatic precast concrete curbstone making machine, also known as a concrete block making machine, is a type of construction equipment used to produce curbstones. But what is a curb? In road design, it is a vertical or sloping element bordering the roadway or shoulder. It may form part of the drainage system, reinforce or protect the edge of the road or surface, and clearly indicate to drivers the boundary of the area accessible to vehicles.
|
|
|
Types of concrete curbs
Three types of curbs are generally distinguished: sidewalk curbs, mountable curbs, and sloping or rounded curbs for parking areas, paths, sports grounds and certain suburban residential areas. Curbs are also generally raised at bus stops to provide access for people with disabilities. Curbs may be precast or cast in place.

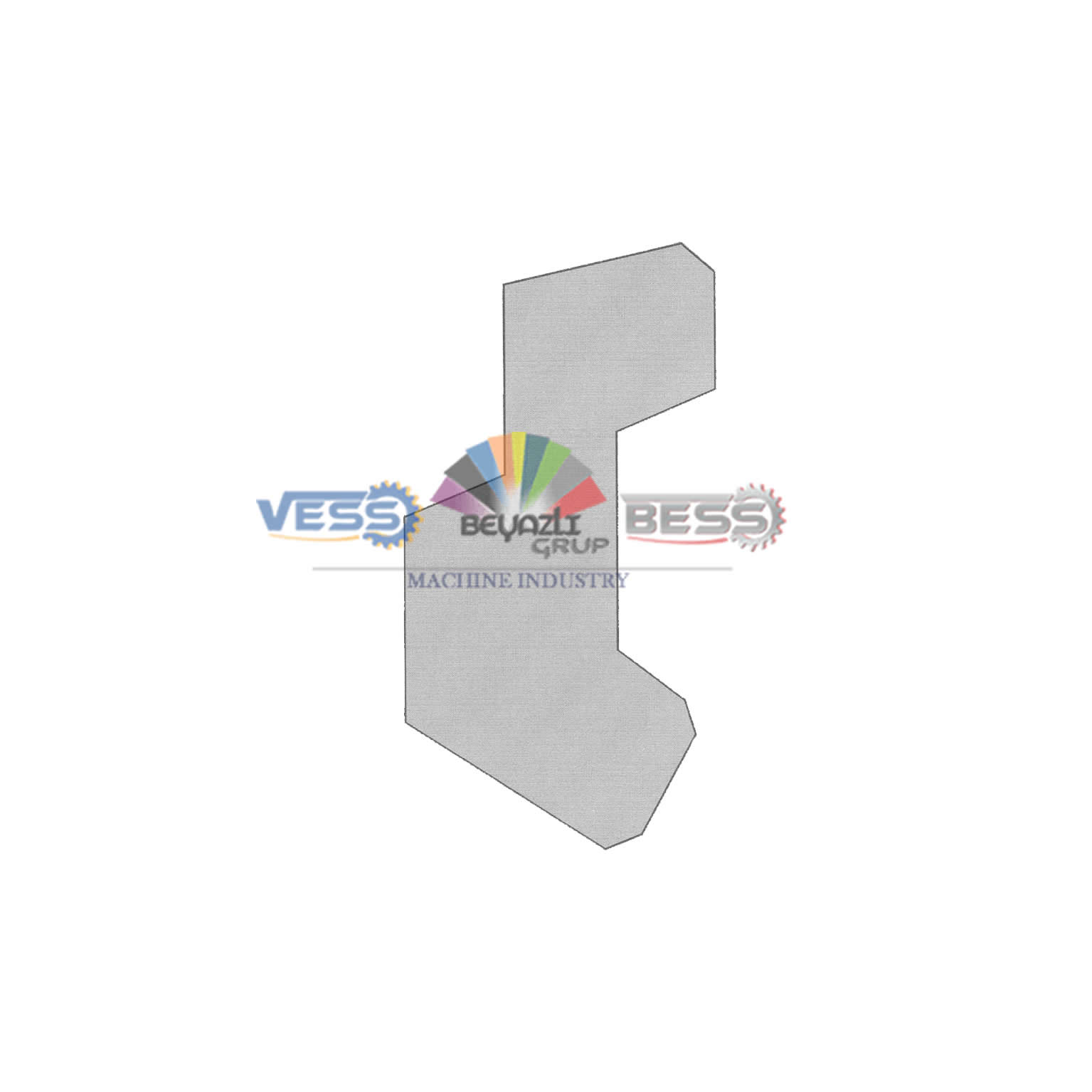

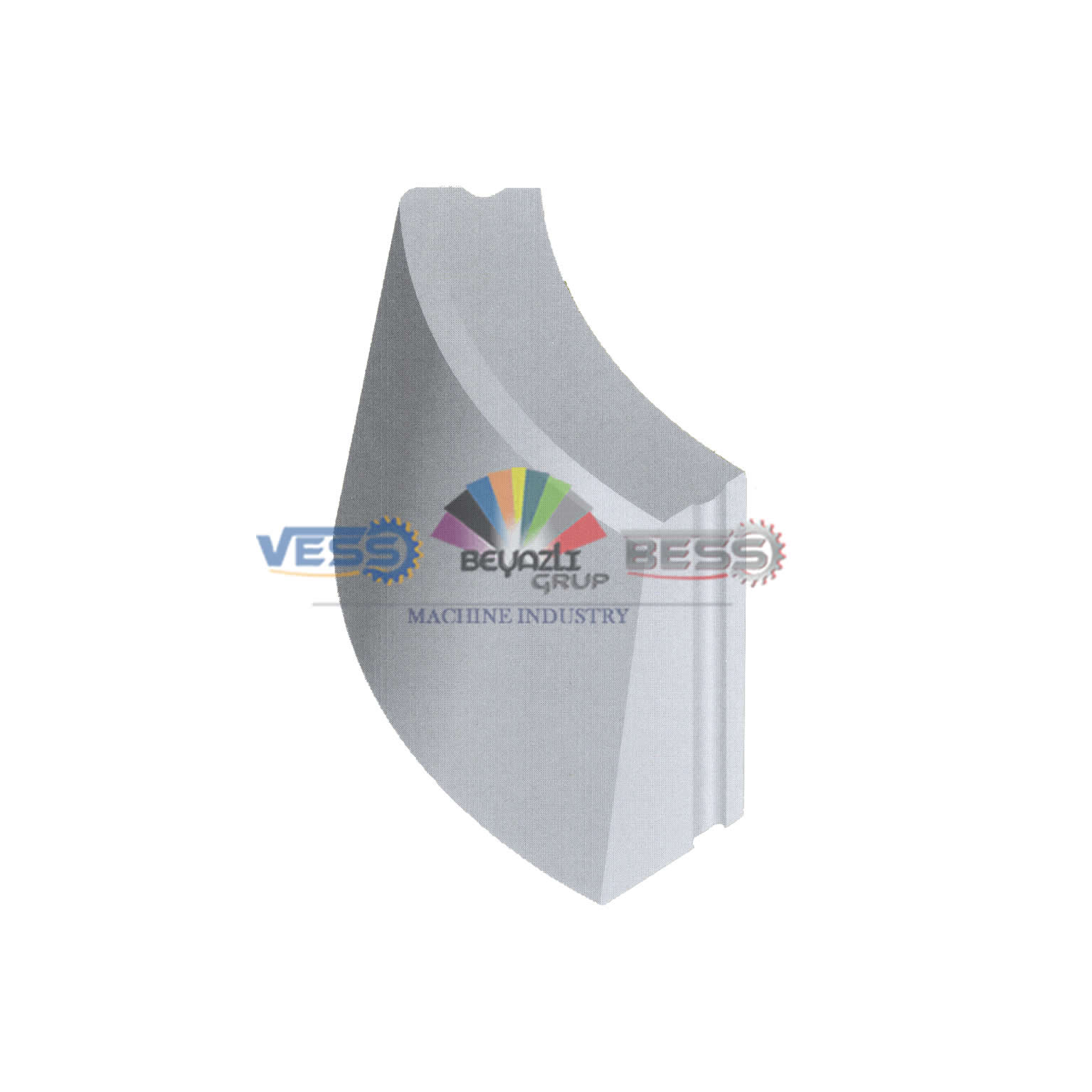

List of precast curbstone types or models
Below is a list of precast curbstone types or models:
- Models A1 – A2: Road or highway shoulder curbs that can be driven over once the roadworks are complete.

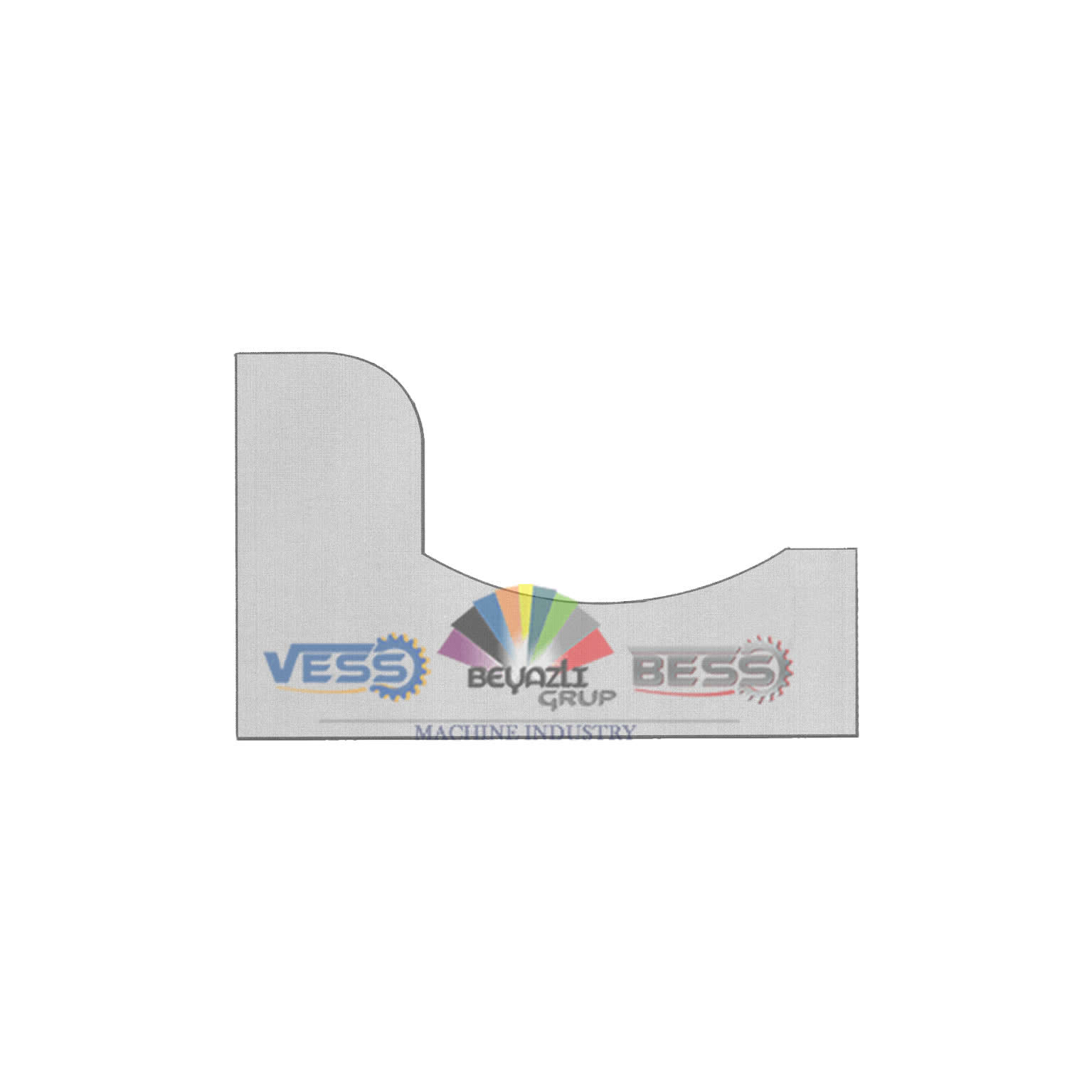

- Models CS1 – CS2 – CS3 – CS4: Single-slope drainage channels for use with type A or type T curbs.
- Models CC1 – CC2: Double-slope drainage channels.
- Models P1 – P2 – P4: Curbs for parking areas, paths and sports grounds.

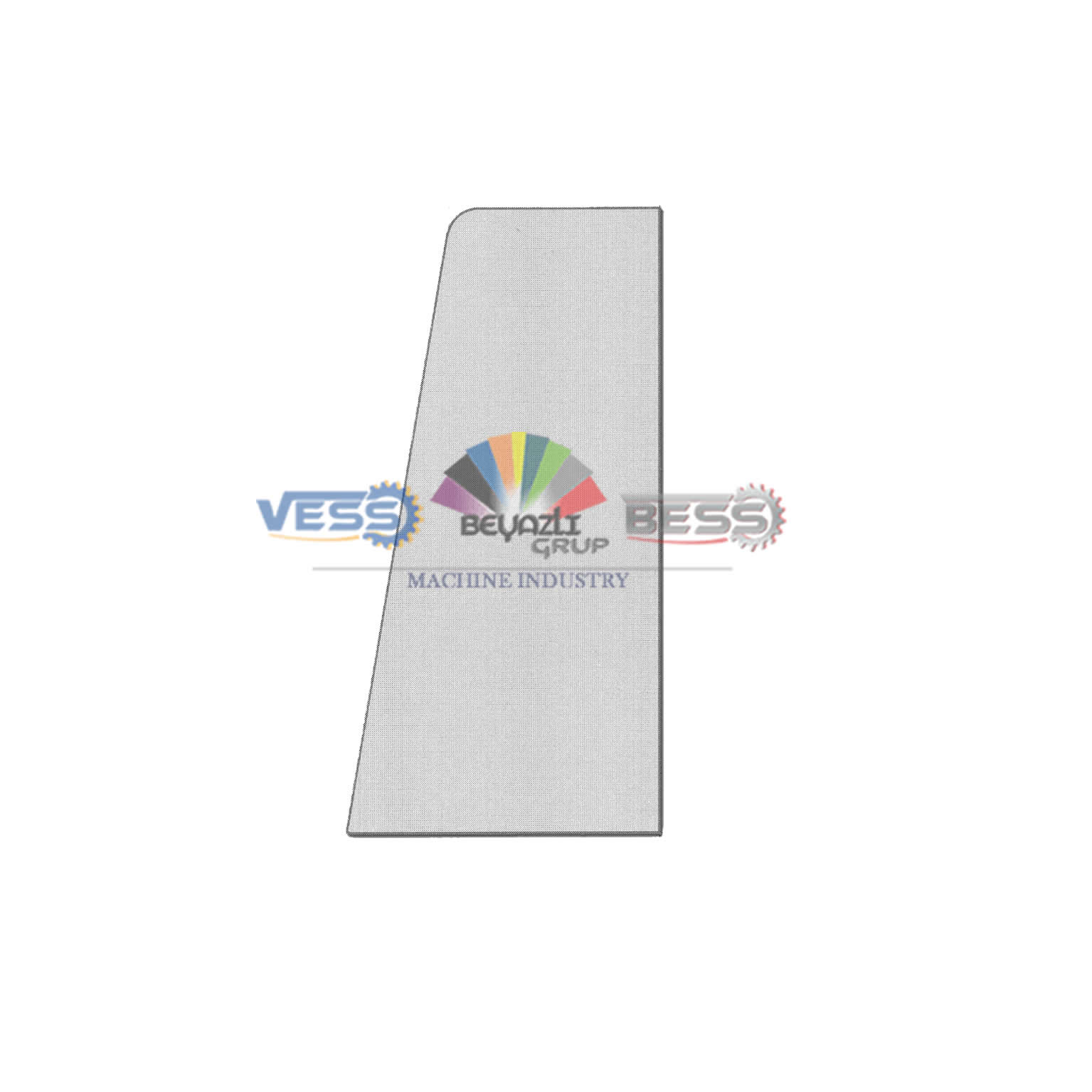

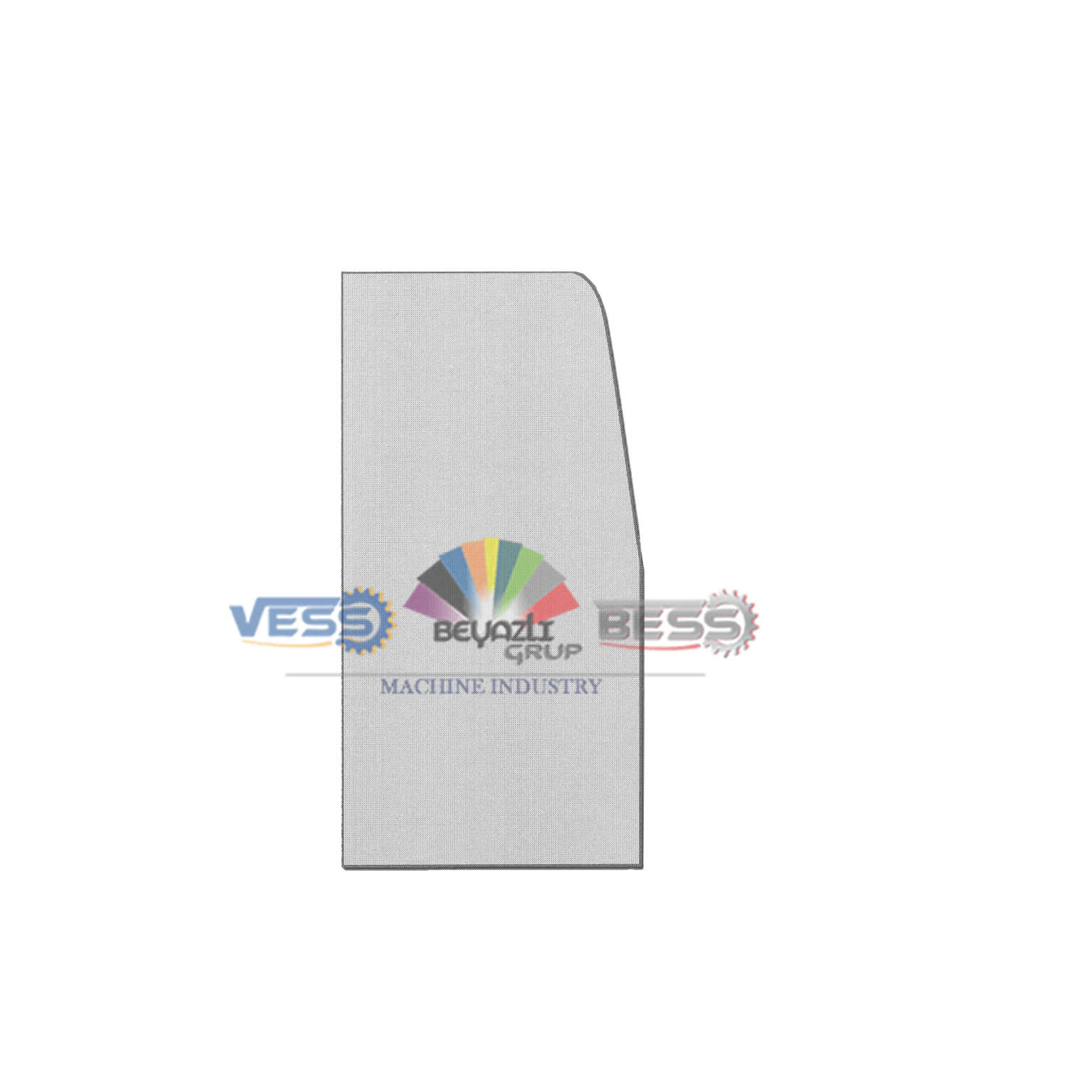

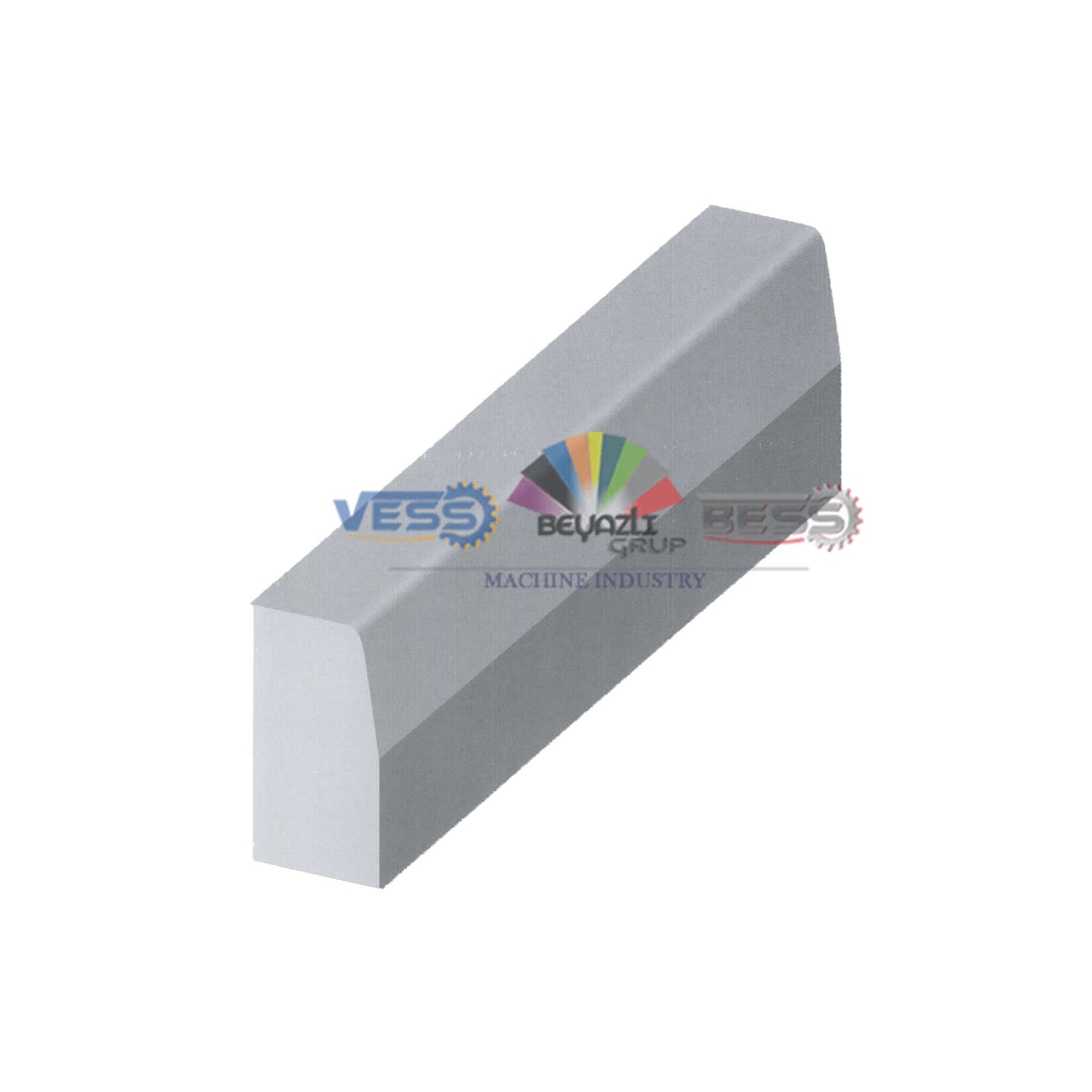

- Type T – Models T1 – T2 – T3 – T4: Sidewalk curbs particularly intended for urban roads.
- Models I1 – I2 – I3 – I4: Traffic island curbs that can either be placed directly on the roadway (I1-I3) or embedded in it (I2-I4).
Curbstones are among the many concrete products used on building and civil engineering sites. The price of a semi-automatic concrete curbstone making machine, also used for concrete blocks or paving blocks, generally depends on its production capacity.
 |
|
|
Other types of machines in the same field
To learn more about other types of machines, click here for:
- Semi-automatic curbstone making machine
- Automatic curbstone making machine
- Manual curbstone making machine

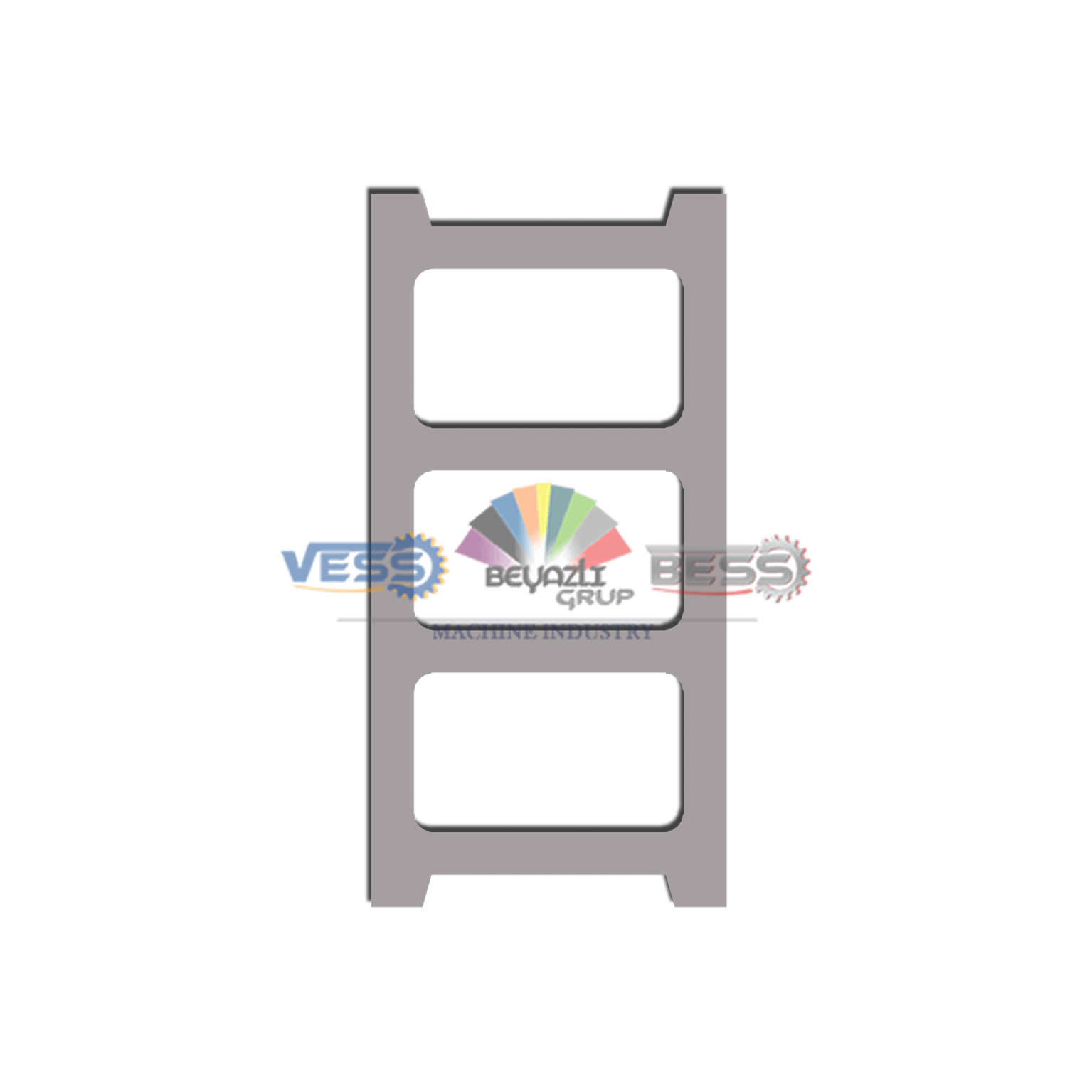

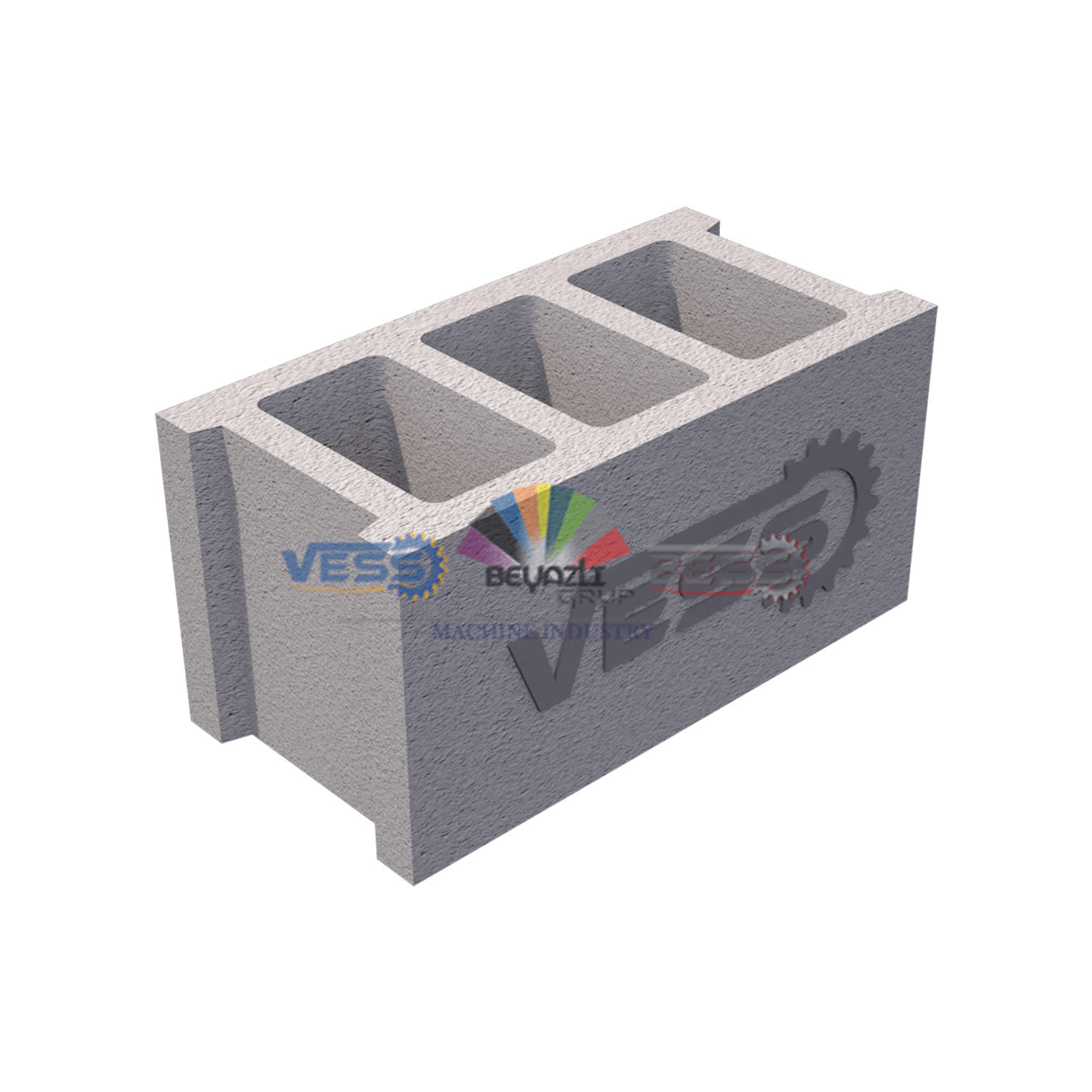

- Semi-automatic concrete block making machine
- Automatic concrete block making machine
- Manual concrete block making machine
- Concrete block making machine and egg-laying block machine prices and details

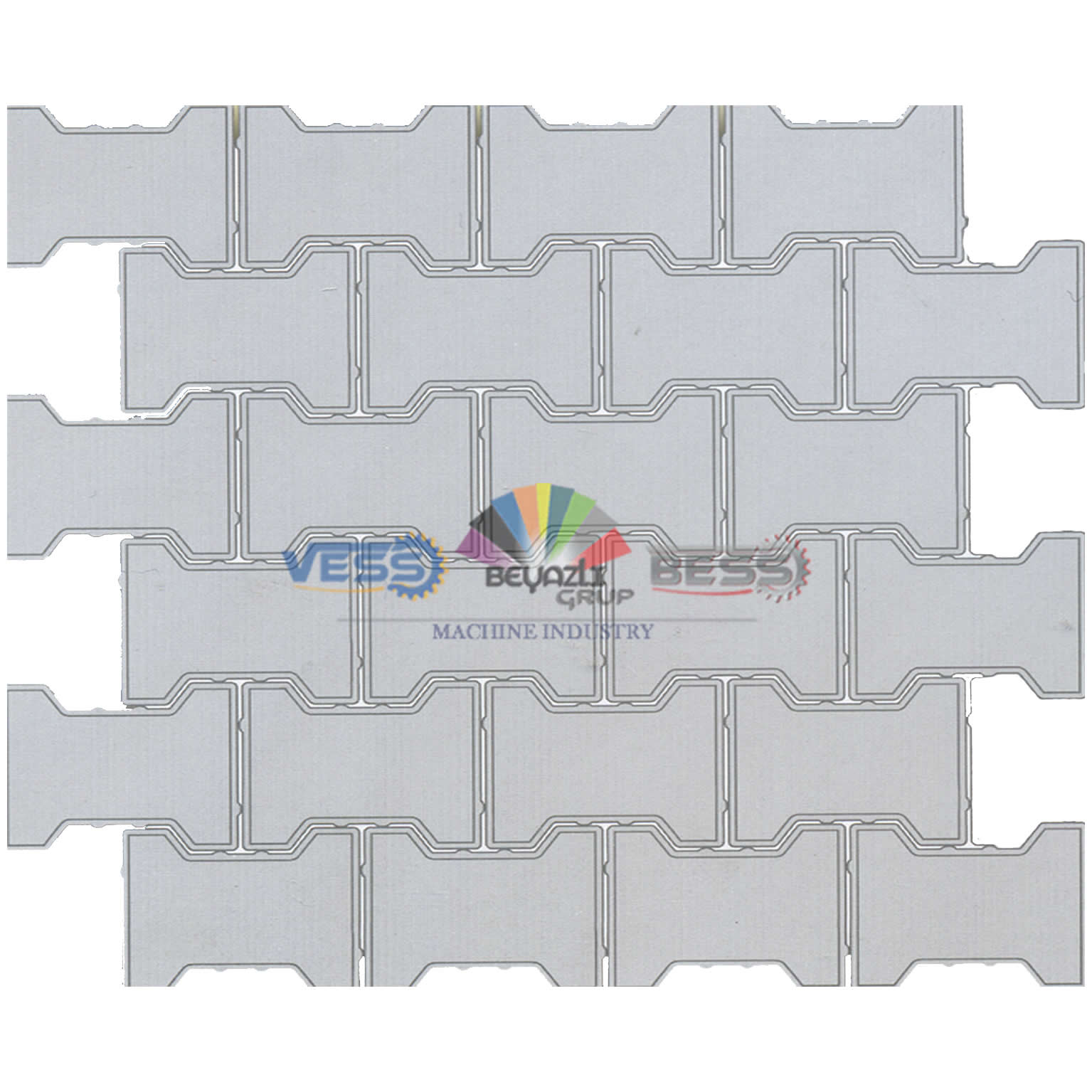

- Interlocking paving block making machine prices and details
- Hollow floor block making machine prices and details
- Cement and sand brick making machine prices and details
- Machine for casting all curb profiles. Concrete curbing machine for sale.
- Concrete curbing machine – Precast concrete curbstone making machine
- Curbstone making machine for sale: information and prices
- Curbing machine: Ideally suited to landscaping, this equipment produces continuous concrete curbs to industry standards and is reliable and easy to use. Its fast operation makes it an asset for building and civil engineering contractors, saving time and therefore money.
 |
 |
 |

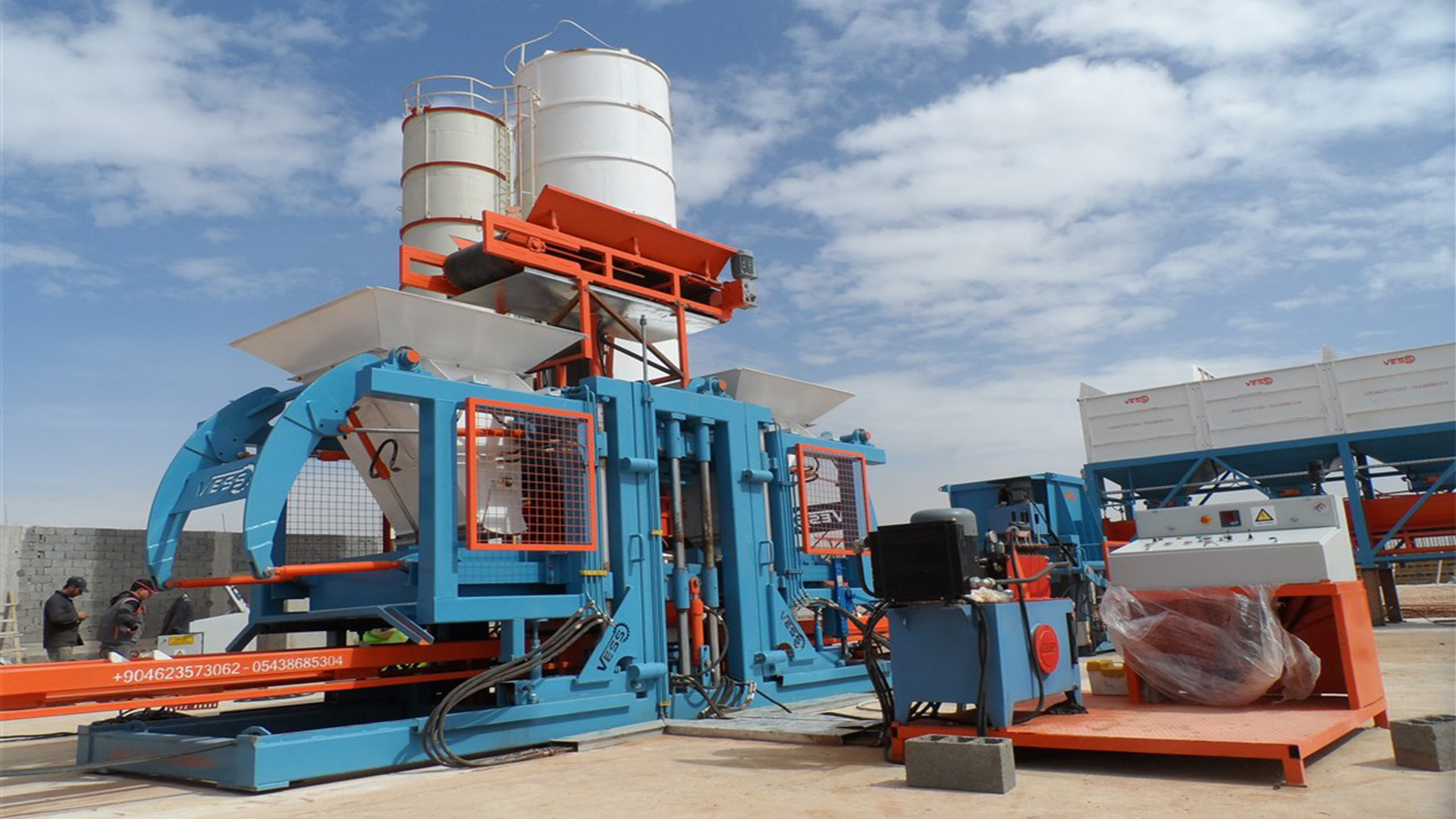

Curbstone making machine automation system
We are a Turkish manufacturer commonly known as Beyazli Group and offer a high-quality range of automatic curbstone and concrete block making machines. Qualified engineers manufacture them using high-quality systems and advanced technology. The offered machine produces curbstones and various types of paving blocks, among other products. Precast Concrete Curbstone Making Machine
Beyazlı Group’s curbstone production system is of world-class quality, with a recent dimensional design in semi-automatic and automatic CNC versions. It is manufactured using modern curbstone production equipment manufacturing methods. The company continues to manage its dealer network throughout Turkey. The curbstone production unit in Gabon can manufacture various concrete products, including bricks, curbstones, and solid or hollow blocks. Its economical price makes it very popular with customers in Morocco, Tunisia, Mali, the United Arab Emirates, Qatar, Algeria, Libya, Saudi Arabia, Russia and elsewhere. Precast Concrete Curbstone Making Machine
After-sales service provided by Beyazli Group
Once the type of curbstone or concrete curbing machine has been agreed and the customer has selected the equipment, contracts are signed. The chosen machine and its equipment are then manufactured to the agreed specifications. Once complete, the machine is shipped to the destination, premises or project site specified by the customer.
Before the curbstone making machine arrives, the company provides a free study, including on-site technician training, and guidance on preparing the project site. After shipment, Beyazli Group sends technicians to install and test the plant and train workers to operate the machine. If a malfunction occurs, the company provides after-sales service for five years. Precast Concrete Curbstone Making Machine
 |
 |
 |
Concrete block making machine

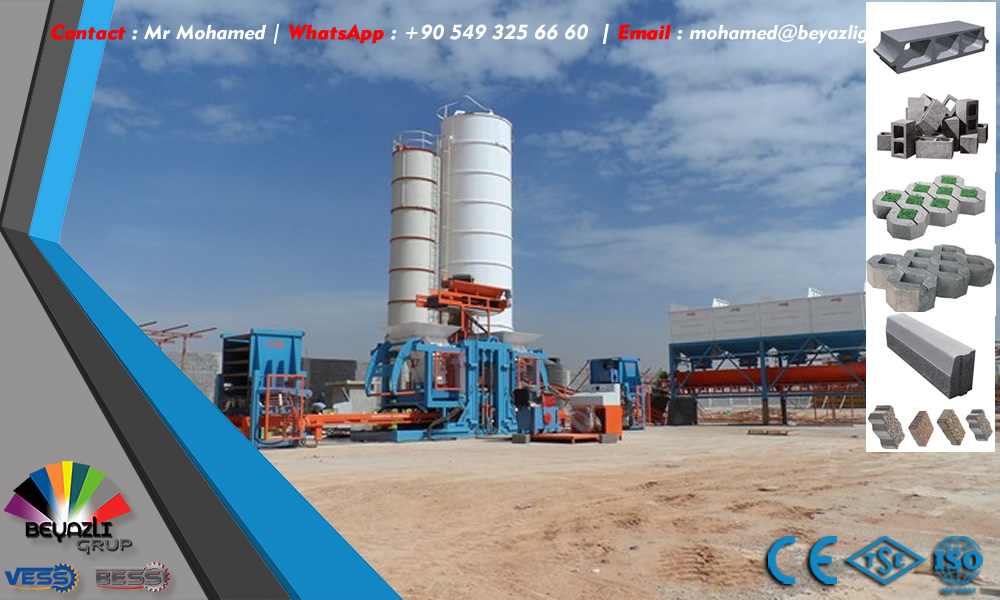

As a manufacturer and exporter, we offer a broad range of semi-automatic, automatic and fully automatic equipment: automatic concrete block making machines, automatic hydraulic brick making machines, concrete curbstone making machines, hollow concrete block making machines, interlocking paving block making machines, concrete block machines and automatic paving block machines. This varied range of machinery and automation uses modern technology. Precast Concrete Curbstone Making Machine
Key features of the concrete block making machine
- Robust construction;
- Long service life;
- Precision design;
- Easy to operate

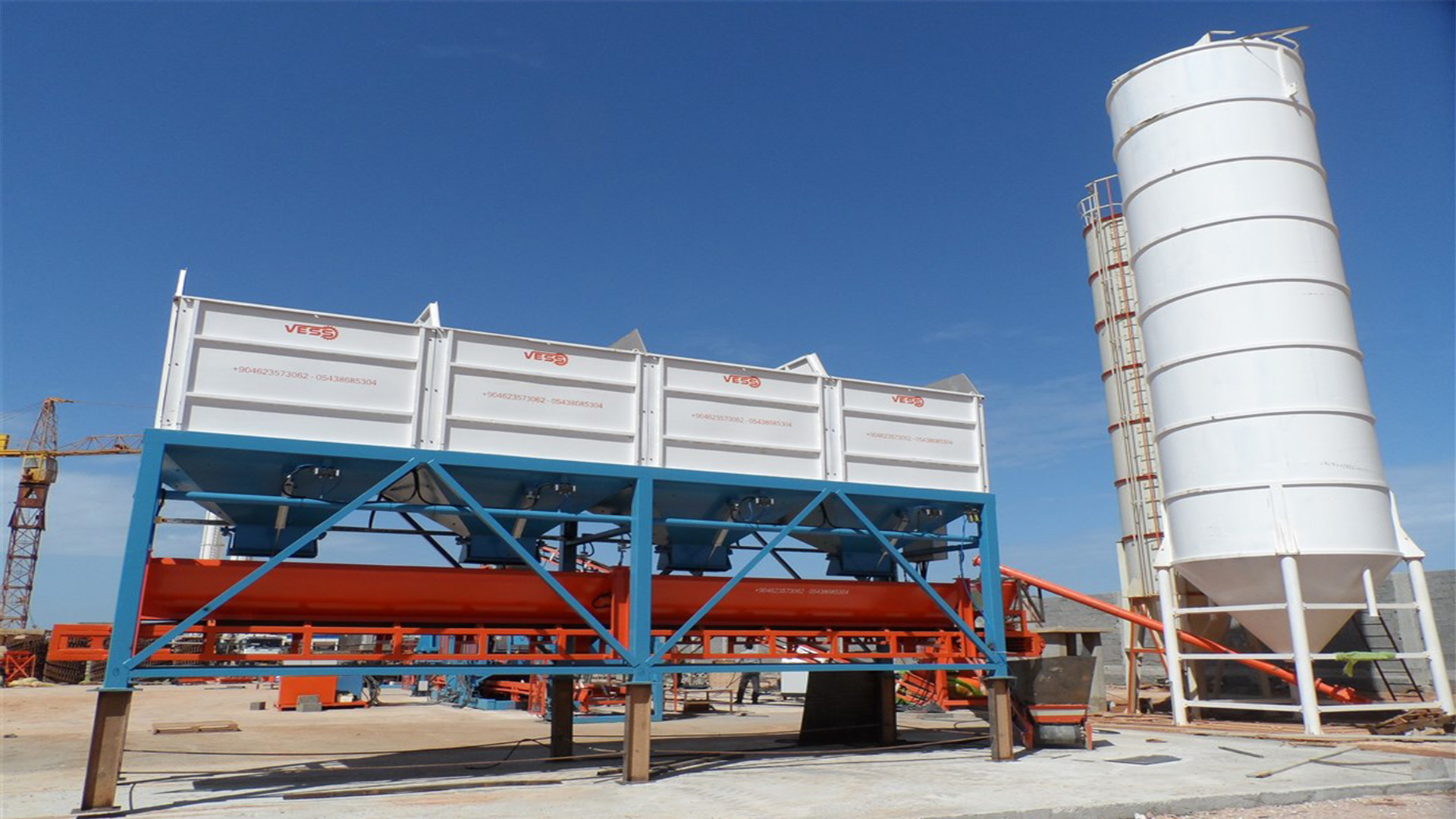

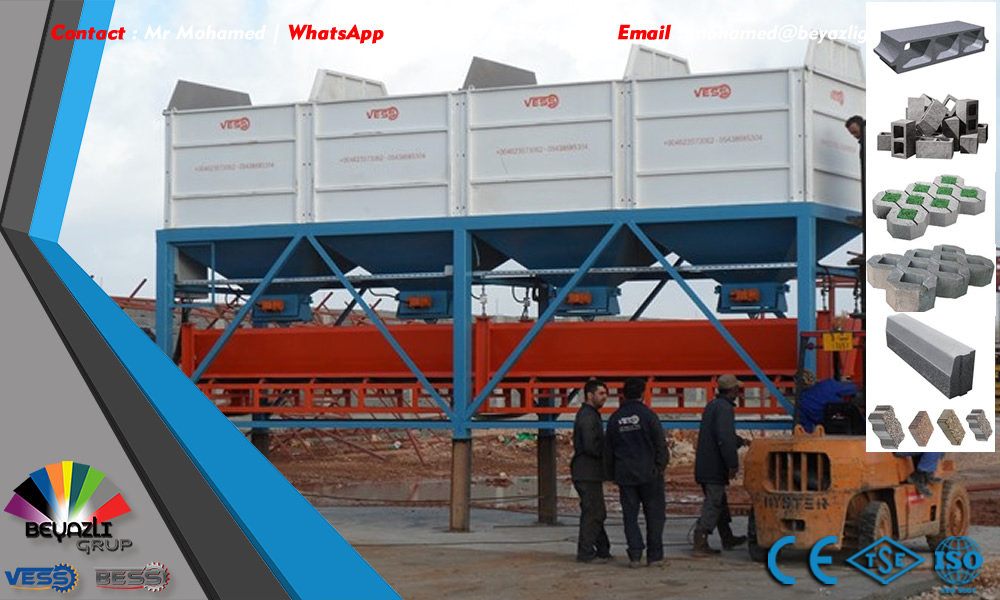

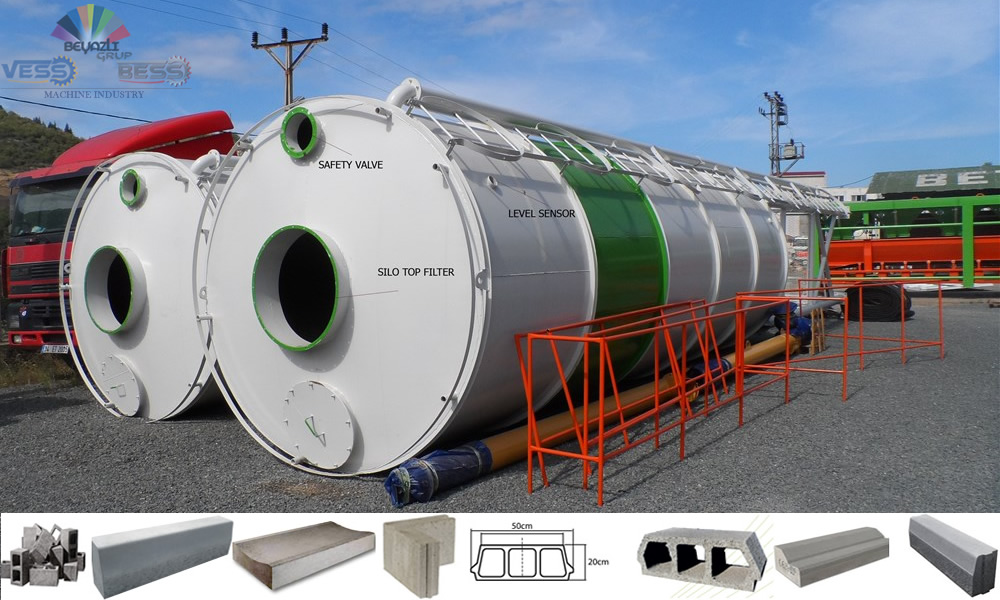

30-Tonne Cement Storage Silo – Concrete Batching Plant – Concrete Block Making Machine – Brick Making Machine
Cement is transferred using the following equipment:
- Shiploader
- Mobile belt conveyors
- Mobile terminal for cement loading and storage
- Cement screw conveyor
Cement storage facilities include:
- Silos
- Port terminals
- Bulk material storage and transport in accordance with ATEX directives
- Silo accessories
 |
 |
 |
Mixer for a curbstone making machine
What is a mixer for a curbstone making machine? This mixer is mainly used to produce concrete for infrastructure projects, wastewater treatment plants and road paving. We offer several types, including planetary, horizontal-shaft and twin-shaft mixers. Precast Concrete Curbstone Making Machine

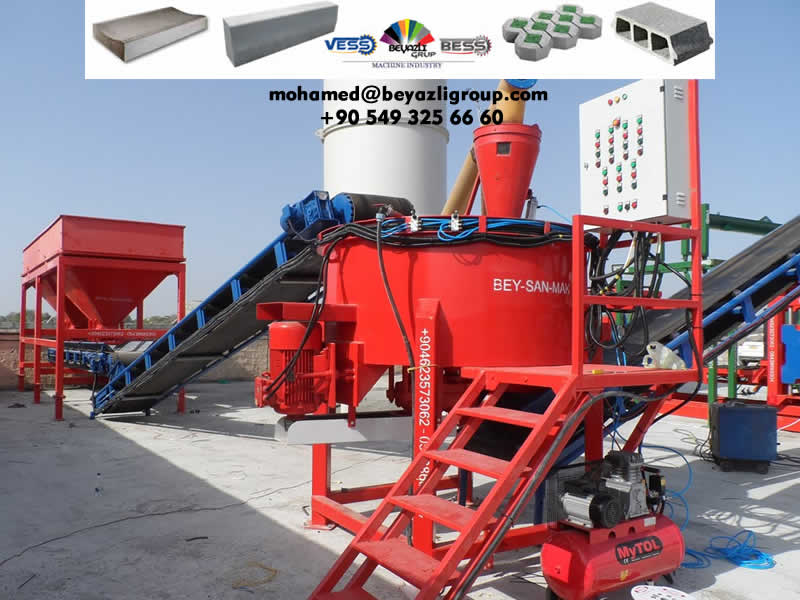

Planetary or Pan Mixer for a Curbstone Making Machine
The curbstone machine’s planetary mixer uses epicyclic motion to produce highly homogeneous concrete, mortar or colored concrete. It is used in many industrial applications, including concrete blocks, paving blocks, curbstones, hollow floor blocks, masonry blocks, gutter paving blocks, drainage channels, concrete pipes and slabs. Mixer sizes range from 0.35 to 3 m³. Energy consumption is low, and maintenance, washing and lubrication are easy. Precast Concrete Curbstone Making Machine
Horizontal-Shaft Mixer for a Curbstone Making Machine
Vertical-shaft mixers for curbstone making machines are an ideal solution for producing ready-mix concrete and mortar, with a high success rate. These robust, durable mixers are easy to refurbish and incorporate readily replaceable materials that extend their service life. They deliver high performance with little maintenance. Their powerful gearboxes ensure maximum operating power. Precast Concrete Curbstone Making Machine
 |
 |
 |
