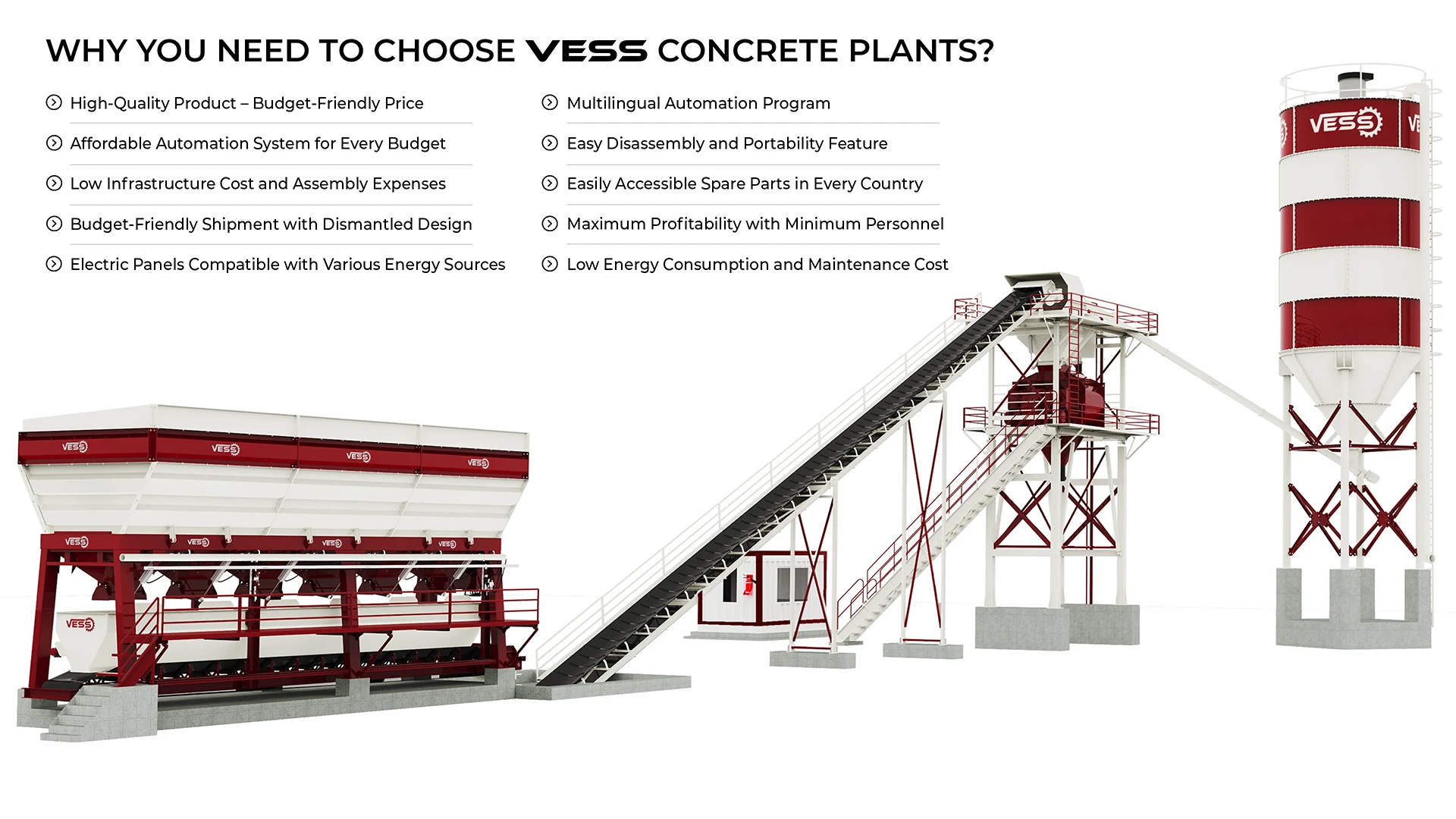

VESS 60 m³ / HOUR - CONCRETE PLANT

VESS 60 m³ / HOUR – CONCRETE PLANT: Machine is designed with fully automatic  operating system.  Designed to work 24 hours. This is the system to make concrete from mixture of Aggregate,Cement,Water and Concrete additives with specific ratio. System starts operation with doing dosage. Electronic weighing belt under the hopper weigh the aggregates and take them on the belt. In the same time  the cement,water and additive weighing operation made in their special region. In the second part , the dosaged products transfers the mixer and starts mixing. In the last part, ready mixture transfers to transmixer under the concrete batching plant sending hopper this operation finishes with loading of requested volume of concrete.  In an hour it can produce 60 m³ Concrete.


VESS 60 m³ / HOUR – CONCRETE PLANT : The price of the campaign is prepared as complete plant  “Turnkey Project. For a plant with these features the recommended curing and stock area should be minimum 1.500 m2 There is no obligation for roofing. The prepared concrete floor should be minimum 1/5 of the total plant area.

Equipments specified in our campaign are as advisory and are stated by the sample installation layout. you can add or remove items from the list.



CLICK FOR CAMPAIGN VESS 60 m³/h CONCRETE PLANT

yapim asamasinda

TECHNICAL SPECIFICATIONS

 TECHNICAL SPECIFICATIONS
 Compacted Concrete Output   60 m³ / Hour  Cement Silo Piece / Capacity  2 Pieces x 60 Ton
 Batch Count    60 (Quantity) Mixture / Hour  Cement Weighing  650 Kg
 Mixer Dry Bulk Capacity    1 m³  Additive Weighing  50 Kg
 Mixer Engine Power   1 x 37 Kw  Water Weighing  500 Kg
 Aggregate Compartments  Quantity / Capacity       4 x 20 m³   Cement Screw Conveyor  2 Piece / 219 x 10.800
 Aggregate Weighing Conveyor  Belt   12 mt x 80 cm  Pneumatic Air Installation  500 Lt / 8 Bar
 Aggregate Weighing    12.000 Kg   Automation Type  Fully Automatic / Telemecanique
 Aggregate Holding Hopper   2 m³  Shipping Volume    1 Piece Flat / 3 Pieces 40 HQ



CLICK THE LINKS BELOW TO SEE OUR DIFFERENT CAPACITIES

Vess 120 m³/h Concrete Plant

Vess 100 m³/h Concrete Plant

Vess 45 m³/h Concrete Plant

Vess 30 m³/h Concrete Plant
